APPLICATIONS：
> Chemical industry
> Water treatment plant
> Environmental protection
> Paper making
> Electroplating
> Metallurgy
> Dyeing
> Ethylene plant
> Chemical plant
SPECIFICATIONS:
> Pump inlet: DN40- DN250 mm
> Pump outlet: DN25 – DN200 mm
> Capacity Q range: 3 m3/h - 600 m3/h
> Head H range: 5 m – 80 m
> Working Temperature Range: -20℃ to 175℃
> Operating Pressure: ~ 1.6 MPa
> Operating speed: 50Hz or 60Hz, VFD
Product Standard: ISO5199
GENERAL DESCRIPTION:

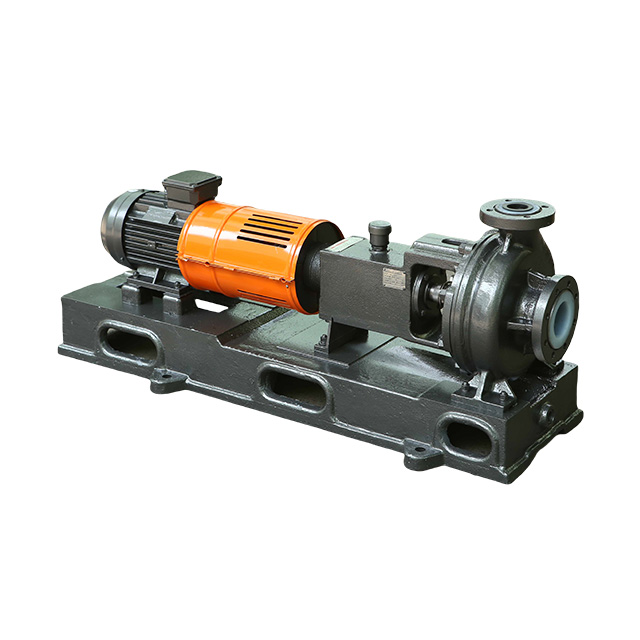

IFK series Teflon lined with metal reinforce chemical centrifugal pump is designed according to ISO2858.
The pump is a horizontal, single stage, radial split volute casing, Teflon lined with metal reinforce centrifugal pump, with foot support, single entry radial Semi-Open impeller, end-suction branch and radial upwards discharge branch.
The motor drives the pump through the flexible disc coupling directly.
